Mechanical Seals & Gland Packing

Mechanical Seals & Gland Packing

Complete range of mechanical seals and gland packing for all pump types

Model Series: Sealing Solutions

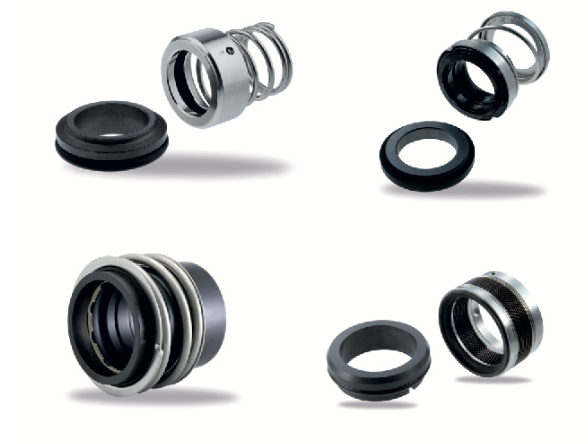

Mechanical Seals & Gland Packing Solutions

Precise seal selection is made following careful assessment of application parameters, fluid characteristics, and installation dimensions to ensure optimal performance. We offer a comprehensive range of mechanical seals and gland packing for all pump types.

Mechanical Seal Types

  • Single Spring Seals
  • Rubber Bellow Seals
  • Metal Bellow Seals
  • Robin Type Seals
  • Multispring Seals
  • Cartridge Type Seals
  • Teflon Bellow Seals

Seal Face Materials

  • Carbon
  • Silicon Carbide
  • Tungsten Carbide
  • Antimony Carbon
  • Ceramic

Gland Packing

For cost-effective operations, gland packing serves as an efficient and durable shaft sealing option. Multiple yarn materials and advanced braiding techniques are utilized to manufacture high-strength, durable, and reliable gland packings.

Technical Specifications

Temperature Range: Up to 350°C
Pressure Range: Up to 25 Bar

Key Features

Precise seal selection for optimal performance
Wide range of seal types available
Multiple seal face material options
Operating temperature up to 350°C
Pressure rating up to 25 Bar
Gland packing sizes from 6mm to 20mm
Complete seal set assemblies available

Materials of Construction

Component Standard Material Optional Materials
Seal Faces Carbon Silicon Carbide / Tungsten Carbide
Elastomers Viton EPDM / PTFE / NBR
Springs Stainless Steel 316 Hastelloy / Inconel
* Specific Materials of Construction (M.O.Cs) available on request

Typical Applications

Water & Waste Water
