SM180-3 Series Centrifugal Multistage Pump

SM180-3 Series Centrifugal Multistage Pump

High-pressure horizontal multistage centrifugal pump for boiler feed, fire fighting, and industrial applications

Model Series: SM180-3 Series
WhatsApp for Quote

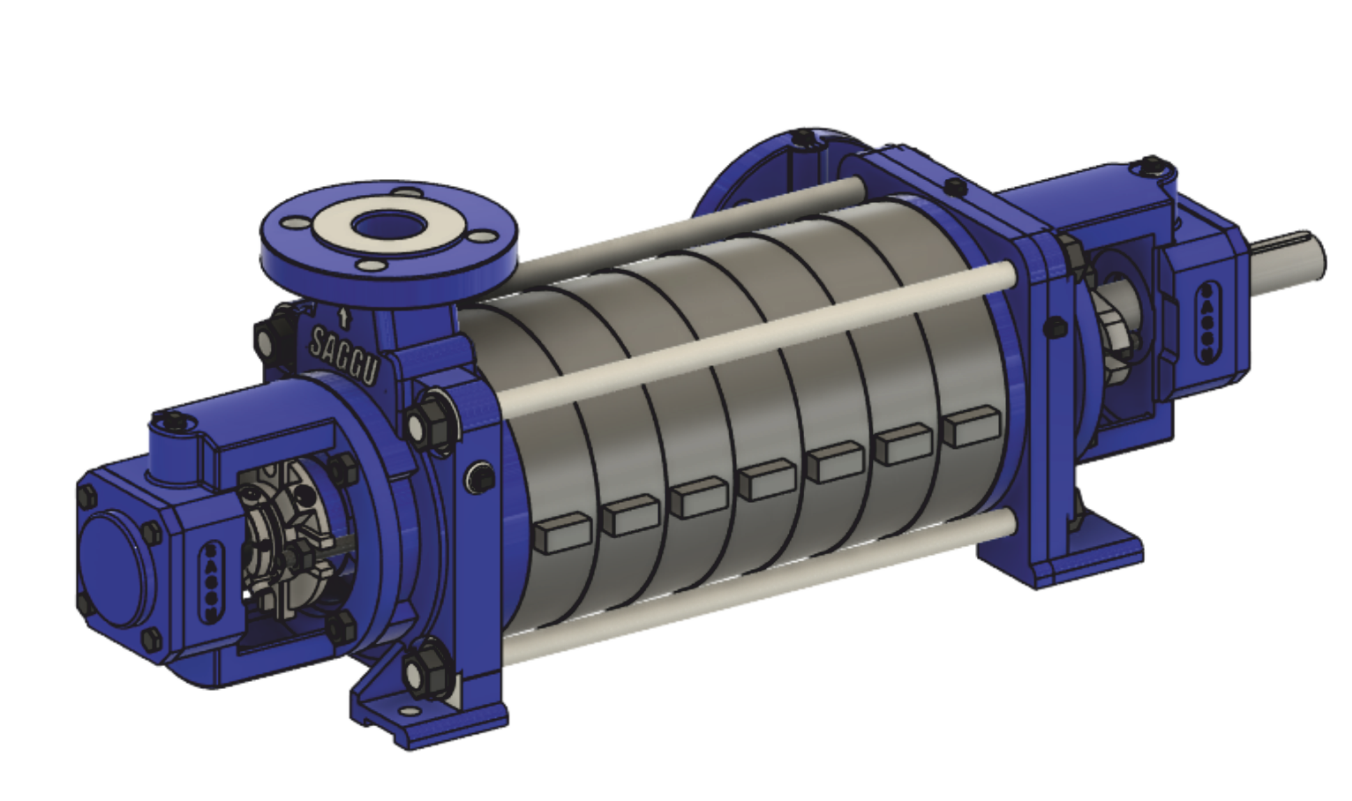

SM180-3 Series Centrifugal Multistage Pump

The SM180-3 series is a high-pressure horizontal multistage centrifugal pump designed for demanding industrial applications. Featuring die-cast diffusers and dynamically balanced impellers with integrated load-balancing vanes to effectively minimize axial thrust and reduce bearing loads.

Key Benefits

  • Energy-efficient operation with optimized hydraulics
  • Between bearing design with anti-friction bearings
  • Smooth flow passage ensures optimized inlet flow
  • Multiple material options for fluid compatibility
  • Easy maintenance with standard foot mounting

Construction Features

  • Die-cast diffusers for improved hydraulic efficiency
  • Dynamically balanced impellers with load-balancing vanes
  • Mechanical seal / gland packing options for high-pressure sealing
  • Between bearing design assembly with anti-friction bearings
  • Standard foot mounting to reduce loads and vibrations

Technical Specifications

Flow Rate: Up to 180 m³/h
Head Range: Up to 400 meters
Temperature Range: Up to 140°C
Pressure Range: Up to 25 Bar
Power Range: 5 kW to 250 kW

Key Features

Die-cast diffusers and dynamically balanced impellers with integrated load-balancing vanes
Multiple material options available for shaft and shaft sleeves
Standard foot mounting to reduce loads & vibrations
Mechanical seal / gland packing options for high-pressure fluids up to 140°C
Between bearing design assembly with anti-friction bearings
Smooth flow passage ensures optimized inlet flow and higher output pressure

Materials of Construction

Component Standard Material Optional Materials
Suction/Delivery Casing Grey Cast Iron EN-GJL-250 Stainless Steel
Impeller Grey Cast Iron EN-GJL-250 Stainless Steel / Bronze
Shaft Stainless Steel Carbon Steel
Diffuser Grey Cast Iron EN-GJL-250 Stainless Steel / Bronze
Bearing Bracket Grey Cast Iron EN-GJL-250
Shaft Sleeve Grey Cast Iron Stainless Steel
* Specific Materials of Construction (M.O.Cs) available on request

Typical Applications

Boiler Feed Water
Condensate Handling
Fire Fighting
General Water Supply
Reverse Osmosis
High Rise Building Water Supply
