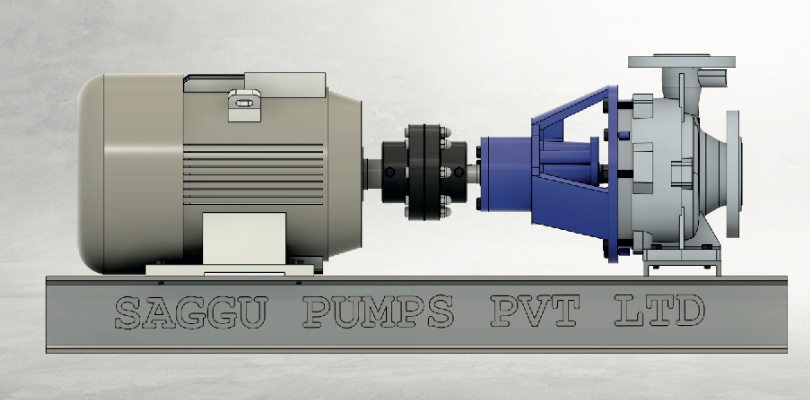

SEI End Suction Process Pump

Model Series: SEI Series

SEI Series is a robust and efficient end suction centrifugal process pump designed specifically for handling chemical, industrial, and process fluids. Engineered for reliability and performance, it is well-suited for demanding applications involving aggressive, corrosive, or slurry-based media.

The pump features a semi-open impeller design, making it ideal for applications where fluids may contain suspended solids or impurities. Its precision-engineered hydraulics ensure smooth flow, reduced energy consumption, and consistent performance across a wide range of operating conditions.

With a compact and rigid construction, the SEI Series offers excellent structural strength and stability. It is designed with flexible sealing and bearing arrangements, enabling reliable operation in diverse environments while minimizing maintenance requirements and downtime.

Manufactured using high-quality materials such as cast iron, stainless steel, and bronze options, the pump provides superior resistance to wear and corrosion, ensuring long service life even in harsh conditions.

The SEI Series is widely used in applications such as acid transfer, chemical processing, pharmaceuticals, slurry handling, food and beverage processing, water and wastewater treatment, and wet scrubber systems, making it a versatile and dependable solution for process industries.

Technical Specifications

Flow Rate: Up to 60 m3/hr
Head Range: Up to 50 m
Temperature Range: Up to 250°C

Key Features

Semi open impeller design
Compact and rigid construction
Wide material options
Flexible sealing and bearing combinations
Low maintenance design

Materials of Construction

Component Standard Material Optional Materials
Casing Grey Cast Iron EN-GJL-250 SS 1.4408 / Bronze
Impeller Grey Cast Iron EN-GJL-250 SS 1.4408 / Bronze
Shaft Stainless Steel 1.4408 / SS410
Stuffing Box Grey Cast Iron EN-GJL-250 SS / Bronze
Bearing Bracket Grey Cast Iron EN-GJL-250
Shaft Sleeve Stainless Steel / SS410
* Specific Materials of Construction (M.O.Cs) available on request

Typical Applications

Chemical Processing
Food & Beverage
Pharmaceuticals
Slurries Transfer
Acid Transfer
Wet Scrubber
